osi3::TrafficAction::LongitudinalDistanceAction Struct Reference

Longitudinal Distance Action. More...

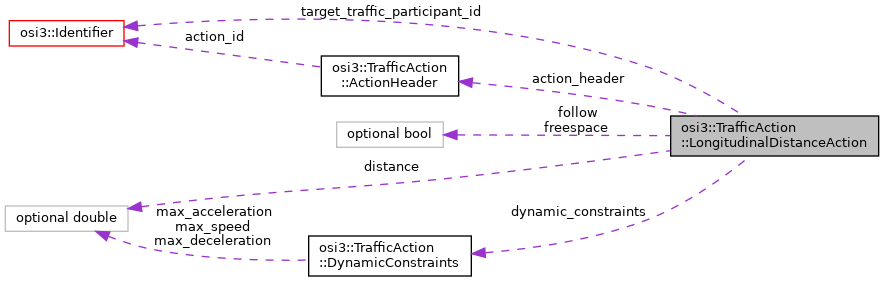

Collaboration diagram for osi3::TrafficAction::LongitudinalDistanceAction:

Public Attributes

optional ActionHeader action_header = 1
 Action Header of the message. More...

optional Identifier target_traffic_participant_id = 2
 Unique Id of the reference traffic participant to which the distance is defined. More...

optional double distance = 3
 The distance to reach along the lane. More...

optional bool freespace = 4
 Determine the measurement of longitudinal distance between the traffic participant receiving this action and the reference traffic participant. More...

optional bool follow = 5
 Define wheather the traffic participant should only reach the distance once or if it should also keep the distance after having reached it. More...

optional DynamicConstraints dynamic_constraints = 6
 Parameter that assings either unlimited dynamics (if omitted) or limited maxAcceleration/maxDeceleration/maxSpeed to the action. More...


Detailed Description

Longitudinal Distance Action.

The action tells the (host) traffic participant to reach a certain longitudinal distance relative to a target traffic participant. The longitudinal distance is defined as the distance along the centerline of the lane, on which the (host) traffic participant is currently located. The interpolation strategy between centerline points for calculating that distance along the centerline is open to the traffic participant modeller.

Note
This action is aligned with LongitudinalDistanceAction of OpenSCENARIO 1.0 defining the reference traffic participant and the distance.
Limitation: This concept currently only works for lanes with a centerline, i.e. for lanes of TYPE_DRIVING, not for lanes of TYPE_NONDRIVING or TYPE_INTERSECTION.

Member Data Documentation

◆ action_header

optional ActionHeader osi3::TrafficAction::LongitudinalDistanceAction::action_header = 1

Action Header of the message.

◆ target_traffic_participant_id

optional Identifier osi3::TrafficAction::LongitudinalDistanceAction::target_traffic_participant_id = 2

Unique Id of the reference traffic participant to which the distance is defined.

◆ distance

optional double osi3::TrafficAction::LongitudinalDistanceAction::distance = 3

The distance to reach along the lane.

Unit: m

◆ freespace

optional bool osi3::TrafficAction::LongitudinalDistanceAction::freespace = 4

Determine the measurement of longitudinal distance between the traffic participant receiving this action and the reference traffic participant.

True: Longitudinal distance is measured using the distance between closest bounding box points. False: Longitudinal distance is mesasured using the distance between the center of each object's bounding box.

◆ follow

optional bool osi3::TrafficAction::LongitudinalDistanceAction::follow = 5

Define wheather the traffic participant should only reach the distance once or if it should also keep the distance after having reached it.

True: the traffic participant shall approach the reference participant and follow with the distance specified until the action is aborted (communicate with AbortActionsAction). False: the action ends as soon as the traffic participant has reached the specified distance (communicate with EndActionsAction).

◆ dynamic_constraints

optional DynamicConstraints osi3::TrafficAction::LongitudinalDistanceAction::dynamic_constraints = 6

Parameter that assings either unlimited dynamics (if omitted) or limited maxAcceleration/maxDeceleration/maxSpeed to the action.


  • osi_trafficcommand.proto
